LS-DYNA: Compression of thin layered structure

2 Posts
2 Users
0 Reactions
2,199 Views
Posts: 19
Topic starter
Translate
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian
(@richardp)
Junior Engineer
Joined: 2 years ago
[#2960]

Hello everyone,

I am trying to simulate the compression of very thin layered structure. It is modeled via a Shell in the middle (0.012 mm thickness), and 2 layers of Solid on each side of the Shell (thickness 0.078 mm).
I have a measured force displacement curve, from which I derived the material parameters for MAT63 compressible foam.

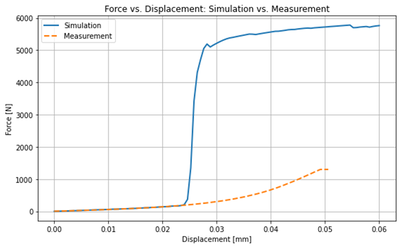

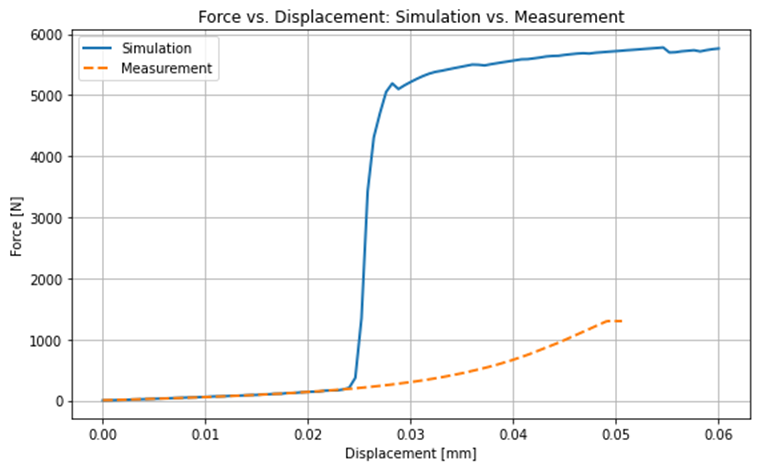

However, at one point the volumetric strain becomes very large and the elements extremely stiff. I tried other element formulations like -1 or -2 without success. I tried to modify the LCID definition without success.

I have attached the rather small model.
Does anyone have a suggestions how to cope with such things?

I know ideally I use 3 solids through thickness. Since this is a material calibration model, that would be possible. the final model is huge, so doing 3 solids with 0.026 mm thickness each is impossible to handle.






1 Reply
